HCPL062N - Dual Channel High Speed-10 MBit/s Logic Gate Optocouplers

HCPL062N Description

HCPL062N 3.3V Dual Channel High Speed-10 MBit/s Logic Gate Optocouplers July 2006 HCPL062N 3.3V Dual Channel High Speed-10 MBit/s Logic Gate Optocou.
The HCPL062N optocouplers consist of an AlGaAs LED, optically coupled to a very high speed integrated photodetector logic gate consisting of bipolar t.

HCPL062N Features

* Compact SO8 package
* Very high speed
* 10MBit/s
* Superior CMR
* 25kV/µs minimum (1,000 volts

HCPL062N Applications

* Ground loop elimination
* Field buses
* Line receiver, data transmission
* Data multiplexing
* Switching power supplies
* Pulse transformer replacement
* Computer-peripheral interface
* Instrumentation input/output isolation Package Dimensions 0.164 (4.16) 0.144 (

📥 Download Datasheet

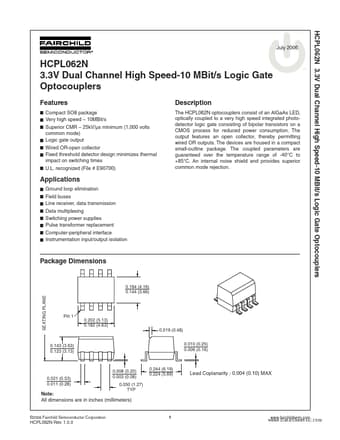

Preview of HCPL062N PDF
