HCPL4503M Datasheet - Fairchild Semiconductor

HIGH SPEED TRANSISTOR OPTOCOUPLERS

HCPL4503M Features

* High Speed

* 1 MBit/s

* Dual-Channel: HCPL2530M, HCPL2531M

* CTR Guaranteed 0°C to 70°C

* No Base Connection for Improved Noise Immunity (HCPL4503M)

* Superior CMR of 15,000 V/μs Minimum (HCPL4503M)

* Safety and Regulatory Approvals

HCPL4503M General Description

The 6N135M, 6N136M, HCPL4503M, HCPL2530M, and HCPL2531M optocouplers consist of an AlGaAs LED optically coupled to a high speed photodetector transistor for each channel. A separate connection for the bias of the photodiode improves the speed by several orders of magnitude over conventional phototra.

HCPL4503M Datasheet (616.00 KB)

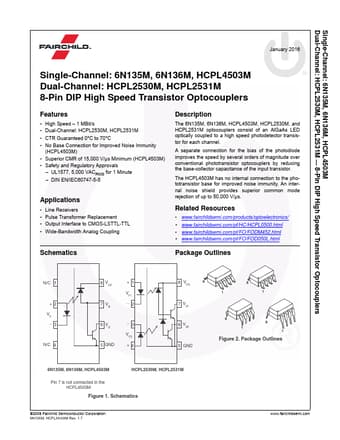

HCPL4503M Datasheet Preview — Preview of HCPL4503M PDF

Datasheet Details

Part number:

HCPL4503M

Manufacturer:

Fairchild Semiconductor

File Size:

616.00 KB

Description:

High speed transistor optocouplers.
Single-Channel: 6N135M, 6N136M, HCPL4503M Dual-Channel: HCPL2530M, HCPL2531M 8-Pin DIP High Speed Transistor Optocouplers January 2016 Sin.
