HCPL4502 Datasheet, Optocouplers, Fairchild Semiconductor

HCPL4502 Features

  • Optocouplers
  • High speed
      –1 MBit/s
  • Superior CMR
      – 10kV/µs
  • Dual-Channel HCPL2530/HCPL2531
  • Double working voltage


PDF File Details

Part number:

HCPL4502

Manufacturer:

Fairchild Semiconductor

File Size:

540.68kb

Download:

📄 Datasheet

Description:

High speed transistor optocouplers. The HCPL4502, HCPL2503, 6N135, 6N136, HCPL2530 and HCPL2531 optocouplers consist of an AlGaAs LED optically coupled to a high speed p

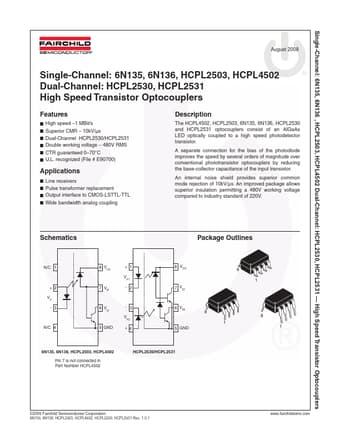

Datasheet Preview: HCPL4502 📥 Download PDF (540.68kb)
Page 2 of HCPL4502 Page 3 of HCPL4502

HCPL4502 Application

  • Applications
  • Line receivers
  • Pulse transformer replacement
  • Output interface to CMOS-LSTTL-TTL
  • Wide bandwidth
