HLMP-D105A - DOUBLE HETEROJUNCTION AIGaAs HIGH INTENSITY RED LED LAMPS

Datasheet Summary

Description

Exceptional light output typifies these devices and provides for their use over a broad range of drive currents.

The LED material is based on double heterojunction (DH) AIGaAs/GaAs technology.

Features

  • Wide Viewing Angle.
  • Deep Red Color Red Red Red Red Diffused Clear with Standoff Diffused Clear.

📥 Download Datasheet

Datasheet preview – HLMP-D105A

Datasheet Details

Part number HLMP-D105A
Manufacturer Fairchild Semiconductor
File Size 273.36 KB
Description DOUBLE HETEROJUNCTION AIGaAs HIGH INTENSITY RED LED LAMPS
Datasheet download datasheet HLMP-D105A Datasheet
Additional preview pages of the HLMP-D105A datasheet.

📁 Similar Datasheet

  • HLMP-D105 - Double Heterojunction AlGaAs Red LED Lamp (Broadcom)
  • HLMP-D105 - LED Lamps (AVAGO)
  • HLMP-D101 - Double Heterojunction AlGaAs Red LED Lamp (Broadcom)
  • HLMP-D101 - LED Lamps (AVAGO)
  • HLMP-D115 - T-13/4 (5 mm)/ T-1 (3 mm)/ High Performance/ Tinted/ Diffused/ AlInGaP/ and TS AlGaAs Red LED Lamps (Agilent(Hewlett-Packard))
  • HLMP-D120 - T-13/4 (5 mm)/ T-1 (3 mm)/ High Performance/ Tinted/ Diffused/ AlInGaP/ and TS AlGaAs Red LED Lamps (Agilent(Hewlett-Packard))
  • HLMP-D1XX - T-13/4 (5 mm)/ T-1 (3 mm)/ High Performance/ Tinted/ Diffused/ AlInGaP/ and TS AlGaAs Red LED Lamps (Agilent(Hewlett-Packard))
  • HLMP-D400 - LED Lamps (HP)
  • HLMP-D401 - (HLMP-3xxx) T-1 3/4 (5 mm) Diffused LED Lamps (Hewlett-Packard)
  • HLMP-D401 - LED Lamps (AVAGO)
Other Datasheets by Fairchild Semiconductor
  • HLMP-D101A - DOUBLE HETEROJUNCTION AIGaAs HIGH INTENSITY RED LED LAMPS
  • HLMP-D150 - DOUBLE HETEROJUNCTION AIGaAs LOW CURRENT RED LED LAMPS
  • HLMP-D150A - DOUBLE HETEROJUNCTION AIGaAs LOW CURRENT RED LED LAMPS
  • HLMP-D155A - DOUBLE HETEROJUNCTION AIGaAs LOW CURRENT RED LED LAMPS
  • HLMP-D400 - T-1 3/4 5mm SOLID STATE LAMPS
  • HLMP-D401 - T-1 3/4 5mm SOLID STATE LAMPS
  • HLMP-D600 - T-1 3/4 5mm SOLID STATE LAMPS
  • HLMP-D640 - T-1 3/4 5mm SOLID STATE LAMPS

Full PDF Text Transcription

Click to expand full text

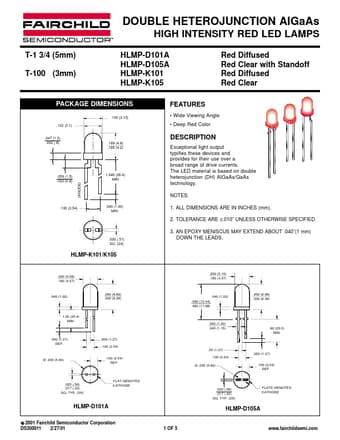

DOUBLE HETEROJUNCTION AIGaAs HIGH INTENSITY RED LED LAMPS T-1 3/4 (5mm) T-100 (3mm) HLMP-D101A HLMP-D105A HLMP-K101 HLMP-K105 FEATURES • Wide Viewing Angle • Deep Red Color Red Red Red Red Diffused Clear with Standoff Diffused Clear PACKAGE DIMENSIONS .135 (3.15) .122 (3.1) .047 (1.2) .032 (.8) DESCRIPTION .189 (4.8) .165 (4.2) (ANODE) .059 (1.5) .032 (0.8) 1.040 (26.4) MIN Exceptional light output typifies these devices and provides for their use over a broad range of drive currents. The LED material is based on double heterojunction (DH) AIGaAs/GaAs technology. NOTES: .100 (2.54) .040 (1.00) MIN 1. ALL DIMENSIONS ARE IN INCHES (mm). 2. TOLERANCE ARE ±.010” UNLESS OTHERWISE SPECIFIED. 3. AN EPOXY MENISCUS MAY EXTEND ABOUT .040”(1 mm) DOWN THE LEADS. .020 (.51) SQ.
