HLMP-D150

DOUBLE HETEROJUNCTION AIGaAs LOW CURRENT RED LED LAMPS

HLMP-D150 Features

* Wide Viewing Angle

* Deep Red Color .189 (4.8) .165 (4.2) Red Red Red Red Diffused Clear with Standoff Diffused Clear PACKAGE DIMENSIONS .135 (3.15) .122 (3.1) .047 (1.2) .032 (.8) DESCRIPTION Exceptional light output typifies these devices and provides for their use over a br

HLMP-D150 General Description

Exceptional light output typifies these devices and provides for their use over a broad range of drive currents. The LED material is based on double heterojunction (DH) AIGaAs/GaAs technology. NOTES: 1. ALL DIMENSIONS ARE IN INCHES (mm). 2. TOLERANCE ARE ±.010” UNLESS OTHERWISE SPECIFIED. 3. AN EPOX.

HLMP-D150 Datasheet (274.39 KB)

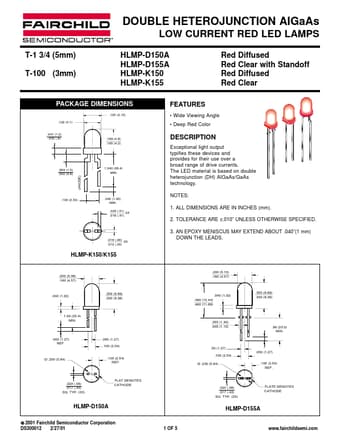

Preview of HLMP-D150 PDF

Datasheet Details

Part number:

HLMP-D150

Manufacturer:

Fairchild Semiconductor

File Size:

274.39 KB

Description:

Double heterojunction aigaas low current red led lamps.
