ILD-74 - Dual Optically-Coupled Isolator

Datasheet Summary

Description

The ILD-74 comprises two distinct optoisolators with transistor output, in a single a-pin dual in-line package.

Each channel consists of a GaAs emitter optically coupled to a phototransistor.

Fairchild Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	ILD-74
Manufacturer	Fairchild Semiconductor
File Size	105.06 KB
Description	Dual Optically-Coupled Isolator
Datasheet	ILD-74 Datasheet
Additional preview pages of the ILD-74 datasheet.

📁 Similar Datasheet

ILD03N60 - LightMOS Power Transistor (Infineon Technologies)
ILD1 - Phototransistor Optocoupler (Siemens Semiconductor Group)
ILD1 - Optocoupler (Vishay Siliconix)
ILD1-004 - Optocoupler (Siemens Semiconductor Group)
ILD1-009 - Optocoupler (Siemens Semiconductor Group)
ILD1150 - Multitopology High Power LED DC/DC Controller (Infineon)
ILD1151 - Multitopology High Power LED DC/DC Controller (Infineon)
ILD1205T - Optocoupler (Vishay Siliconix)
ILD1206T - Optocoupler (Vishay Siliconix)
ILD1207T - Optocoupler (Vishay Siliconix)

Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

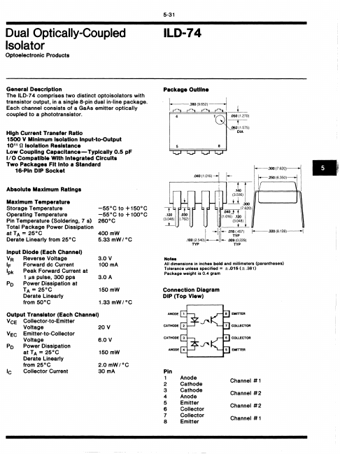

Dual Optically-Coupled Isolator Optoelectronic Products 5-31 ILD-74 General Description The ILD-74 comprises two distinct optoisolators with transistor output, in a single a-pin dual in-line package. Each channel consists of a GaAs emitter optically coupled to a phototransistor. High Current Transfer Ratio 1500 V Minimum Isolation Input-ta-Output 1011 {1 Isolation Resistance Low Coupling Capacitance-Typically 0.5 pF I/O Compatible With Integrated Circuits Two Packages Fit Into a Standard 1S-Pln DIP Socket Absolute Maximum Ratings Maximum Temperature Storage Temperature -55°C to +150°C Operating Temperature -55°C to +100°C Pin Temperature (Soldering, 7 s) 260°C Total Package Power Dissipation at TA = 25°C 400mW Derate Linearly from 25°C 5.
