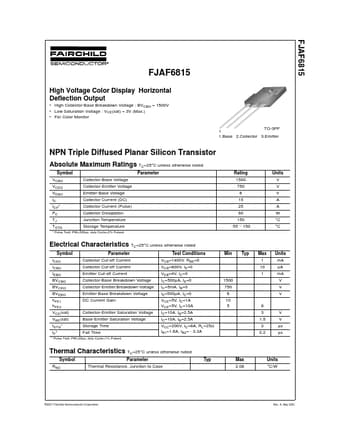

FJAF6815 FJAF6815 High Voltage Color Display Horizontal Deflection Output High Collector-Base Breakdown Voltage : BVCBO = 1500V Low Saturation Voltage : VCE(sat) = 3V (Max.) For Color Monitor 1 TO-3PF 1.Base 2.Collector 3.Emitter NPN Triple Diffused Planar Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol Parameter VCBO Collector-Base Voltage VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current (.
