J6820 FJL6820

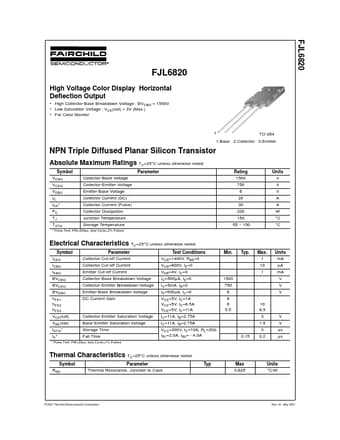

FJL6820 FJL6820 High Voltage Color Display Horizontal Deflection Output High Collector-Base Breakdown Voltage : BVCBO = 1500V Low Saturation Voltage : VCE(sat) = 3V (Max.) For Color Monitor 1 TO-264 1.Base 2.Collector 3.Emitter NPN Triple Diffused Planar Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC ICP PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector .
