KA3162 - Single IGBT Gate Driver

Datasheet Summary

Description

The FAN8800 is a monolithic integrated circuit designed for driving single IGBT with De-saturation and undervoltage protection.

It is suitable for driving discrete and module IGBTs, and further, it offers a cost effective solution for driving power MOSFETs.

Features

  • High Current Output: 1.0A Source and 2.0A Sink Protection against Overcurrent and Short circuit CMOS Compatible Input and Fault Status Indicator Programmable Fault-Out Duration Time Built in Slow Turn-off Circuit Under Fault Condition Undervoltage Lockout Optimized for IGBTs Negative Gate Drive Capability Suitable for Integration in Power Modules -40 to 105°C Operating Temperature.

📥 Download Datasheet

Datasheet preview – KA3162

Datasheet Details

Part number KA3162
Manufacturer Fairchild Semiconductor
File Size 127.19 KB
Description Single IGBT Gate Driver
Datasheet download datasheet KA3162 Datasheet
Additional preview pages of the KA3162 datasheet.

📁 Similar Datasheet

  • KA3100D - Stepping Motor Driver (Fairchild)
  • KA311 - Single Comparator (Fairchild)
  • KA311 - SINGLE COMPARATOR (Powerex Powers)
  • KA311 - SINGLE COMPARATOR (Samsung)
  • KA311D - SINGLE COMPARATOR (Samsung)
  • KA317 - 3-Terminal Positive Adjustable Regulator (Fairchild)
  • KA317 - 3-Terminal Positive Adjustable Regulator (ON Semiconductor)
  • KA317L - 3-Terminal 0.1A Positive Adjustable Regulator (Fairchild)
  • KA317M - 3-Terminal 0.5A Positive Adjustable Regulator (Fairchild)
  • KA317TU - 3-Terminal Positive Adjustable Regulator (ON Semiconductor)
Other Datasheets by Fairchild Semiconductor
  • KA3120 - SPINDLE & VOICE COIL MOTOR ONE CHIP DRIVER
  • KA3010D - 15V 1.7W 4-channel motor driver
  • KA3032 - 5-Channel Motor Drive IC
  • KA336-2.5 - Programmable Shunt Regulator
  • KA336-2.5B - Programmable Shunt Regulator
  • KA3511 - Intelligent Voltage Mode PWM IC
  • KA3511D - Intelligent Voltage Mode PWM IC
  • KA3511DS - Intelligent Voltage Mode PWM IC

Full PDF Text Transcription

Click to expand full text

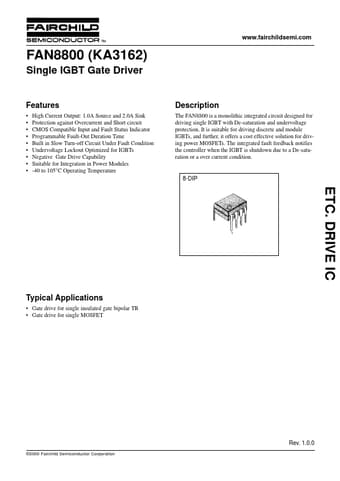

www.DataSheet4U.com www.fairchildsemi.com FAN8800 (KA3162) Single IGBT Gate Driver Features • • • • • • • • • High Current Output: 1.0A Source and 2.0A Sink Protection against Overcurrent and Short circuit CMOS Compatible Input and Fault Status Indicator Programmable Fault-Out Duration Time Built in Slow Turn-off Circuit Under Fault Condition Undervoltage Lockout Optimized for IGBTs Negative Gate Drive Capability Suitable for Integration in Power Modules -40 to 105°C Operating Temperature Description The FAN8800 is a monolithic integrated circuit designed for driving single IGBT with De-saturation and undervoltage protection. It is suitable for driving discrete and module IGBTs, and further, it offers a cost effective solution for driving power MOSFETs.
