KA336-2.5

Programmable Shunt Regulator

KA336-2.5 Features

* Low temperature coefficient

* Guaranteed temperature stability 4mV typical

* 0.2Ω dynamic impedance

* ±1.0% initial tolerance available

* Easily trimmed for minimum temperature drift Description The KA336-2.5/B integrated Circuits are precision 2.5V shunt r

KA336-2.5 General Description

The KA336-2.5/B integrated Circuits are precision 2.5V shunt regulators. The monolithic IC voltage references operates as a low temperature coeffcient 2.5V zener with 0.2W dynamic impedance. A third terminal on the KA336-2.5/B allow the reference voltage and temperature coefficent to be trimmed easi.

KA336-2.5 Datasheet (44.74 KB)

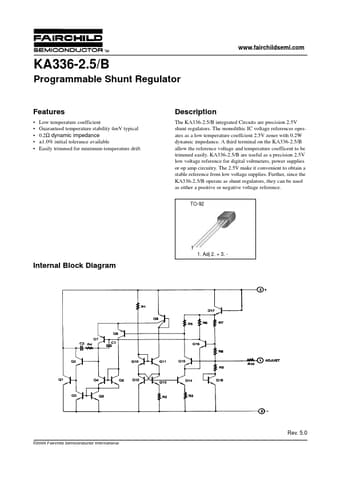

Preview of KA336-2.5 PDF

Datasheet Details

Part number:

KA336-2.5

Manufacturer:

Fairchild Semiconductor

File Size:

44.74 KB

Description:

Programmable shunt regulator.
