KA7808R

3-Terminal 1A Positive Voltage Regulator

KA7808R Features

* Output Current up to 1A

* Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V

* Thermal Overload Protection

* Short Circuit Protection

* Output Transistor Safe Operating Area Protection Description The KA78XX/KA78XXA series of three-terminal positive regulat

KA7808R General Description

The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, maki.

KA7808R Datasheet (223.52 KB)

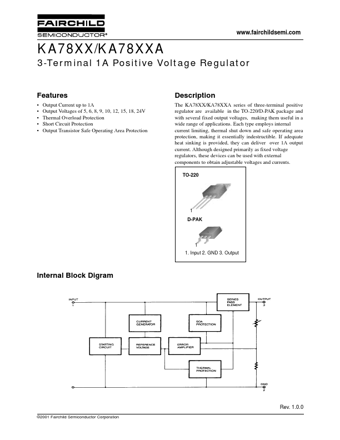

Preview of KA7808R PDF

Datasheet Details

Part number:

KA7808R

Manufacturer:

Fairchild Semiconductor

File Size:

223.52 KB

Description:

3-terminal 1a positive voltage regulator.
