KA7808

3-Terminal 1A Positive Voltage Regulator

Image Manufacturer B2B MPN Description Distributor Stock Quantity Price Buy Now
Distributor onsemi KA7808AE IC REG LINEAR 8V 1A TO220-3 DigiKey 0 2400 units
$0.17

KA7808 Datasheet (227.11 KB)

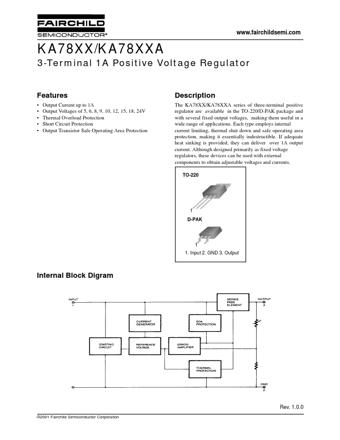

Preview of KA7808 PDF

Datasheet Details

Part number:

KA7808

Manufacturer:

Fairchild

File Size:

227.11 KB

Description:

3-terminal 1a positive voltage regulator.

KA7808 Features

* Output Current up to 1A Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V Thermal Overload Protection Short Circuit Protection Output Transistor Safe Operating Area Protection Description The KA78XX/KA78XXA series of three-terminal positive regulat

KA7808 General Description

The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, making them useful in a wide range of applications. Each type employs internal current limiting, thermal shut down and safe operating area protection, maki.
