KA7812R, KA7805R, 3-Terminal 1A Positive Voltage Regulator

www.fairchildsemi.com KA78XX/KA78XXA 3-Terminal 1A Positive Voltage Regulator .
The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed output voltages, makin.

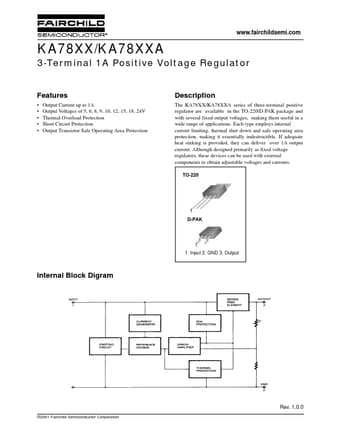

datasheet Preview Page 1 from Datasheet4u.com

KA7805R-FairchildSemiconductor.pdf

KA7812R Datasheet Preview — This datasheet PDF includes multiple part numbers: KA7812R, KA7805R. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

KA7812R, KA7805R

Manufacturer:

Fairchild Semiconductor

File Size:

223.52 KB

Description:

3-Terminal 1A Positive Voltage Regulator

Note:

This datasheet PDF includes multiple part numbers: KA7812R, KA7805R.
Please refer to the document for exact specifications by model.

Features

* Output Current up to 1A
* Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V
* Thermal Overload Protection
* Short Circuit Protection

Applications

* Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used
