KA7810 Datasheet, Regulator, Fairchild

KA7810 Features

• Regulator
• Output Current up to 1A Output Voltages of 5, 6, 8, 9, 10, 12, 15, 18, 24V Thermal Overload Protection Short Circuit Protection Output

PDF File Details

Part number:

KA7810

Manufacturer:

Fairchild

File Size:

227.11kb

Download:

📄 Datasheet

Description:

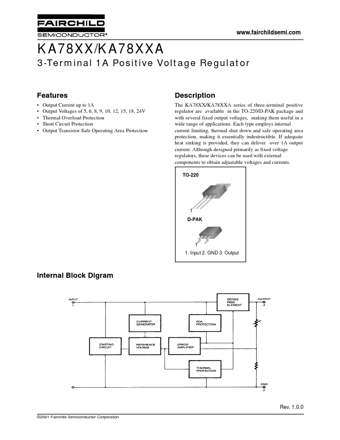

3-terminal 1a positive voltage regulator. The KA78XX/KA78XXA series of three-terminal positive regulator are available in the TO-220/D-PAK package and with several fixed outpu

KA7810 Application

• Applications Each type employs internal current limiting, thermal shut down and safe operating area protection, making it essentially indestructibl
