KSA1013 Datasheet - Fairchild Semiconductor

KSA1013 - PNP Silicon Transistor

KSA1013 KSA1013 Color TV Audio Output Color TV Vertical Deflection Output 1 TO-92L 1.

Emitter 2.

Collector 3.

Base PNP EPITAXIAL SILICON TRANSISTOR Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC IB PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings -160 -160 -6 -1 -0.5 900 150 -55 ~ 150 Units V V V A A mW °C °C

KSA1013_FairchildSemiconductor.pdf

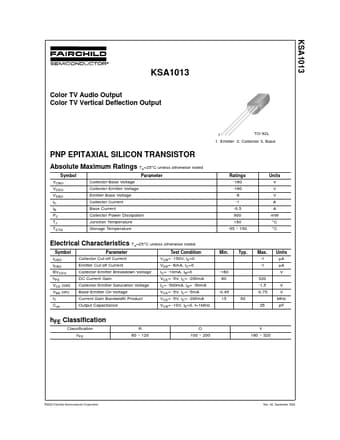

Preview of KSA1013 PDF
KSA1013 Datasheet Preview Page 2 KSA1013 Datasheet Preview Page 3

Datasheet Details

Part number:

KSA1013

Manufacturer:

Fairchild Semiconductor

File Size:

55.09 KB

Description:

Pnp silicon transistor.
