KSA1015 - PNP Epitaxial Silicon Transistor

Product Overview

Fairchild Semiconductor

Part number	KSA1015
Manufacturer	Fairchild Semiconductor
File Size	129.75 KB
Description	PNP Epitaxial Silicon Transistor
Datasheet	KSA1015 Datasheet

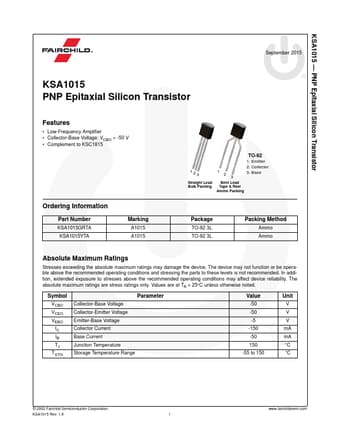

Additional preview pages of the KSA1015 datasheet.

Low-Frequency Amplifier.
Collector-Base Voltage: VCBO = -50 V.
Complement to KSC1815 Ordering Information Part Number KSA1015GRTA KSA1015YTA Marking A1015 A1015 123 Straight Lead Bulk Packing TO-92 1. Emitter 12 3 2. Collector 3. Base Bent Lead Tape & Reel Ammo Packing Package TO-92 3L TO-92 3L Packing Method Ammo Ammo Absolute Maximum Ratings Stresses exceeding the absolute maximum ratings may damage the device. The device may not function or be operable.
