KSA1304 Vertical Output Applications Power Amplifier Applications

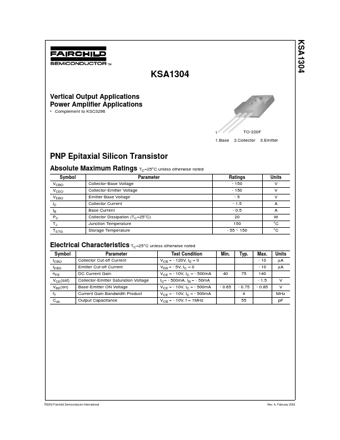

KSA1304 KSA1304 Vertical Output Applications Power Amplifier Applications Complement to KSC3296 1 TO-220F 2.Collector 3.Emitter 1.Base PNP Epitaxial Silicon Transistor Absolute Maximum Ratings TC=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC IB PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Base Current Collector Dissipation (TC=25°C) Junction Temperature Storage Temperature Ratings - 150 - 150 -5 - 1.5 - 0.5 20 .

KSA1304_FairchildSemiconductor.pdf

Preview of KSA1304 PDF
KSA1304 Datasheet Preview Page 2 KSA1304 Datasheet Preview Page 3

Datasheet Details

Part number:

KSA1304

Manufacturer:

Fairchild Semiconductor

File Size:

56.49 KB

Description:

Vertical output applications power amplifier applications.
