KSC1623GMTF Datasheet - Fairchild Semiconductor

KSC1623GMTF NPN Epitaxial Silicon Transistor

KSC1623 KSC1623 Low Frequency Amplifier & High Frequency OSC. Complement to KSA812 2 1 3 SOT-23 1. Base 2. Emitter 3. Collector NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings 60 50 5 100 200 150 -55 ~ 150 Units V V V mA mW °C °C El.

KSC1623GMTF Datasheet (60.86 KB)

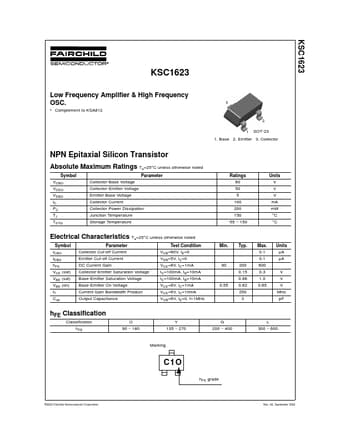

Preview of KSC1623GMTF PDF

Datasheet Details

Part number:

KSC1623GMTF

Manufacturer:

Fairchild Semiconductor

File Size:

60.86 KB

Description:

Npn epitaxial silicon transistor.
