KSC2710 Datasheet - Fairchild Semiconductor

KSC2710 Low Frequency Power Amplifier

KSC2710 KSC2710 Low Frequency Power Amplifier Complement to KSA1150 Collector Dissipation : PC=300mW 1 TO-92S 1.Emitter 2. Collector 3. Base NPN Epitaxial Silicon Transistor Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current Collector Power Dissipation Junction Temperature Storage Temperature Ratings 40 20 5 500 300 150 -55 ~ 150 Unit.

KSC2710_FairchildSemiconductor.pdf

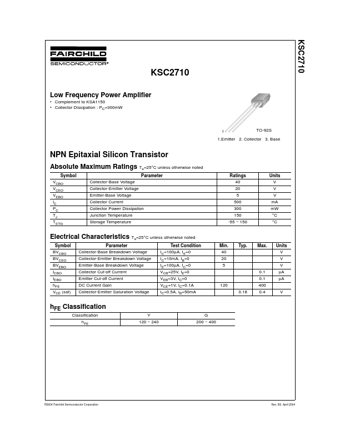

Preview of KSC2710 PDF
KSC2710 Datasheet Preview Page 2 KSC2710 Datasheet Preview Page 3

Datasheet Details

Part number:

KSC2710

Manufacturer:

Fairchild Semiconductor

File Size:

41.12 KB

Description:

Low frequency power amplifier.
