KSR2103 Datasheet - Fairchild Semiconductor

KSR2103 Switching Application

KSR2103 KSR2103 Switching Application (Bias Resistor Built In) Switching circuit, Inverter, Interface circuit, Driver Circuit Built in bias Resistor (R1=22KΩ, R2=22KΩ) Complement to KSR1103 3 2 1 SOT-23 1. Base 2. Emitter 3. Collector Equivalent Circuit Marking R1 B R2 C R5 3 PNP Epitaxial Silicon Transistor E Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltag.

KSR2103_FairchildSemiconductor.pdf

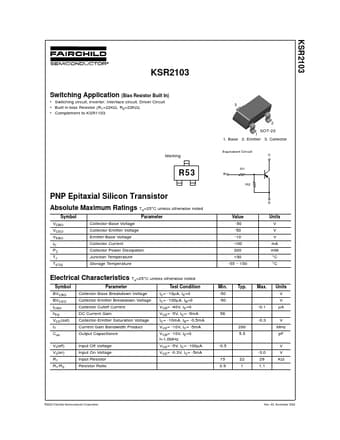

Preview of KSR2103 PDF
KSR2103 Datasheet Preview Page 2 KSR2103 Datasheet Preview Page 3

Datasheet Details

Part number:

KSR2103

Manufacturer:

Fairchild Semiconductor

File Size:

56.40 KB

Description:

Switching application.
