KSR2002 Datasheet - Fairchild Semiconductor

KSR2002 Switching Application

KSR2002 KSR2002 Switching Application (Bias Resistor Built In) Switching circuit, Inverter, Interface circuit, Driver Circuit Built in bias Resistor (R1=10KΩ, R2=10KΩ) Complement to KSR1002 1 TO-92 1. Emitter 2. Collector 3. Base Equivalent Circuit C R1 B R2 PNP Epitaxial Silicon Transistor E Absolute Maximum Ratings Ta=25°C unless otherwise noted Symbol VCBO VCEO VEBO IC PC TJ TSTG Parameter Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Volta.

KSR2002_FairchildSemiconductor.pdf

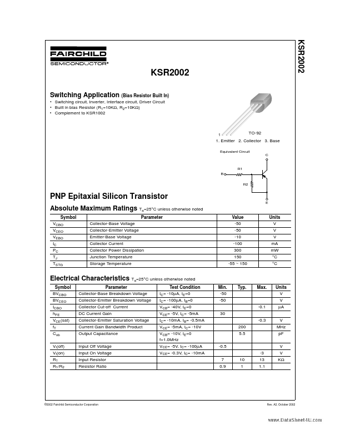

Preview of KSR2002 PDF
KSR2002 Datasheet Preview Page 2 KSR2002 Datasheet Preview Page 3

Datasheet Details

Part number:

KSR2002

Manufacturer:

Fairchild Semiconductor

File Size:

41.14 KB

Description:

Switching application.
