KSR2104 - Switching Application

Fairchild Semiconductor

Datasheet Details

Part number	KSR2104
Manufacturer	Fairchild Semiconductor
File Size	59.33 KB
Description	Switching Application
Datasheet	KSR2104 Datasheet
Additional preview pages of the KSR2104 datasheet.

📁 Similar Datasheet

KSR2104 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2101 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2103 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2105 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2106 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2107 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2108 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2109 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2110 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)
KSR2111 - PNP (SWITCHING APPLICATION) (Samsung semiconductor)

Other Datasheets by Fairchild Semiconductor

KSR2101 - Switching Application
KSR2102 - PNP Epitaxial Silicon Transistor
KSR2103 - Switching Application
KSR2113 - Switching Application
KSR2001 - Switching Application
KSR2002 - Switching Application
KSR2003 - Switching Application
KSR2005 - Switching Application

Full PDF Text Transcription

Click to expand full text

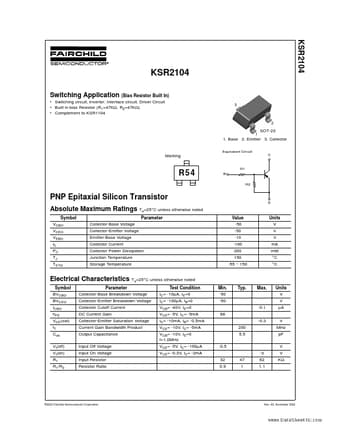

KSR2104 KSR2104 Switching Application (Bias Resistor Built In) • Switching circuit, Inverter, Interface circuit, Driver Circuit • Built in bias Resistor (R1=47KΩ, R2=47KΩ) • Complement to KSR1104 3 2 1 SOT-23 1. Base 2. Emitter 3.
