LM324N - Quad Operational Amplifier

This page provides the datasheet information for the LM324N, a member of the LM324 Quad Operational Amplifier family.

Datasheet Summary

Description

The LM324/LM324A, LM2902/LM2902A consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range.

Features

  • Internally Frequency Compensated for Unity Gain.
  • Large DC Voltage Gain: 100dB.
  • Wide Power Supply Range: LM324/LM324A : 3V~32V (or ±1.5 ~ 16V) LM2902/LM2902A: 3V~26V (or ±1.5V ~ 13V).
  • Input Common Mode Voltage Range Includes Ground.
  • Large Output Voltage Swing: 0V to VCC -1.5V.
  • Power Drain Suitable for Battery Operation.

📥 Download Datasheet

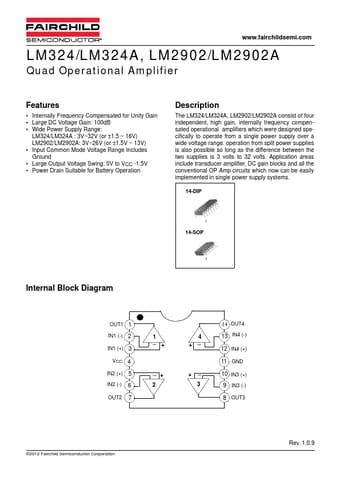

Datasheet preview – LM324N

Datasheet Details

Part number LM324N
Manufacturer Fairchild Semiconductor
File Size 196.55 KB
Description Quad Operational Amplifier
Datasheet download datasheet LM324N Datasheet
Additional preview pages of the LM324N datasheet.

📁 Similar Datasheet

  • LM324N - Single Supply Quad Operational Amplifier (ON Semiconductor)
  • LM324N - Quadruple Operational Amplifier (Texas Instruments)
  • LM324N - Quad Low Power Operational Amplifier (Motorola)
  • LM324N - Quad Operational Amplifiers (HTC)
  • LM324 - Quad Low Power Operational Amplifier (Motorola Inc)
  • LM324 - Low Power Quad Operational Amplifiers (National Semiconductor)
  • LM324 - QUAD OPERATIONAL AMPLIFIERS (UTC)
  • LM324 - Single Supply Quad Operational Amplifier (ON Semiconductor)
  • LM324 - Low-power quad operational amplifiers (STMicroelectronics)
  • LM324 - Quadruple Operational Amplifier (Texas Instruments)
Other Datasheets by Fairchild Semiconductor
  • LM324 - Quad Operational Amplifier
  • LM324A - Quad Operational Amplifier
  • LM301A - Single Operational Amplifier
  • LM311 - Single Comparator
  • LM311M - Single Comparator
  • LM311N - Single Comparator
  • LM317 - 3-Terminal Positive Adjustable Regulator
  • LM317L - 3-Terminal 0.1A Positive Adjustable Regulator

Full PDF Text Transcription

Click to expand full text
www.fairchildsemi.com LM324/LM324A, LM2902/LM2902A Quad Operational Amplifier Features • Internally Frequency Compensated for Unity Gain • Large DC Voltage Gain: 100dB • Wide Power Supply Range: LM324/LM324A : 3V~32V (or ±1.5 ~ 16V) LM2902/LM2902A: 3V~26V (or ±1.5V ~ 13V) • Input Common Mode Voltage Range Includes Ground • Large Output Voltage Swing: 0V to VCC -1.5V • Power Drain Suitable for Battery Operation Description The LM324/LM324A, LM2902/LM2902A consist of four independent, high gain, internally frequency compensated operational amplifiers which were designed specifically to operate from a single power supply over a wide voltage range. operation from split power supplies is also possible so long as the difference between the two supplies is 3 volts to 32 volts.
