MBRS320 Datasheet - Fairchild Semiconductor

SCHOTTKY POWER RECTIFIER

MBRS320 Features

* Compact surface mount package with J-bend leads (SMC).

* 3.0 Watt Power Dissipation package.

* 3.0 Ampere, forward voltage less than 500 mv Ordering:

* 13 inch reel (330 mm); 16 mm Tape; 3,000 units per reel. Absolute Maximum Ratings

* Parameter Storage Tempera

MBRS320 General Description

Schottky Barrier Diodes make use of the rectification effect of a metal to silicon barrier. They are ideally suited for high frequency rectification in switching regulators & converters. This device offers a low forward voltage performance in a power surface mount package in applications where size.

MBRS320 Datasheet (71.51 KB)

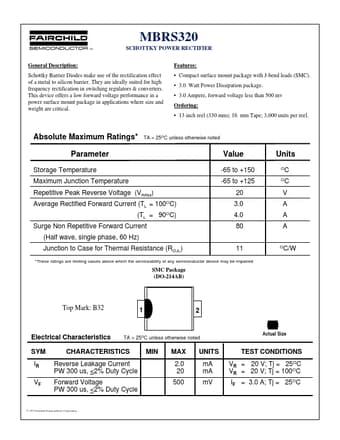

MBRS320 Datasheet Preview — Preview of MBRS320 PDF

Datasheet Details

Part number:

MBRS320

Manufacturer:

Fairchild Semiconductor

File Size:

71.51 KB

Description:

Schottky power rectifier.
