MBRS3201P, Schottky Fast Soft-Recovery Power Rectifier

MBRS3201P 200 V, 3 A Schottky Fast Soft-Recovery Power Rectifier SMC Power Surface Mount Package .

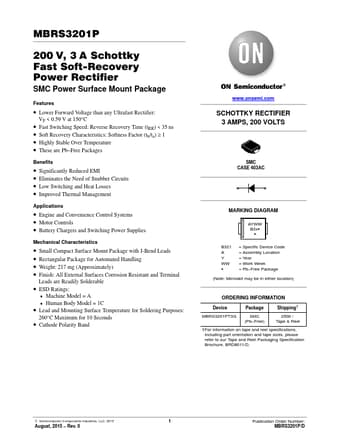

datasheet Preview Page 1 from Datasheet4u.com

MBRS3201P-ONSemiconductor.pdf

MBRS3201P Datasheet Preview — Preview of MBRS3201P PDF

Datasheet Details

Part number:

MBRS3201P

Manufacturer:

ON Semiconductor ↗

File Size:

54.04 KB

Description:

Schottky Fast Soft-Recovery Power Rectifier

Features

* Lower Forward Voltage than any Ultrafast Rectifier: VF < 0.59 V at 150°C
* Fast Switching Speed: Reverse Recovery Time (tRR) < 35 ns
* Soft Recovery Characteristics: Softness Factor (tb/ta) ≥ 1
* Highly Stable Over Temperature
* These are Pb
* Free Pac

Applications

* Engine and Convenience Control Systems
* Motor Controls
* Battery Chargers and Switching Power Supplies Mechanical Characteristics
* Small Compact Surface Mount Package with J-Bend Leads
* Rectangular Package for Automated Handling
* Weight: 217 mg (
