MC3303 - Quad Operational Amplifier

MC3303 Description

www.fairchildsemi.com MC3303/MC3403 Quad Operational Amplifier .
The MC3303/MC3403 series is a monolithic Quad operational amplifier consisting of four independent amplifiers.

MC3303 Features

* Output voltage can swing to GND or negative supply Wide power supply range; Single supply of 3.0V to 36V Dual supply of ±1.5V to ±18V Electrical characteristics similar to the KA741 Class AB output stage for minimal crossover dist

MC3303 Applications

* 14-DIP 1 14-SOP 1 Internal Block Diagram Rev. 1.0.1 ©2001 Fairchild Semiconductor Corporation MC3303/MC3403 Schematic Diagram Absolute Maximum Ratings Parameter Supply Voltage Differential Input Voltage Input Voltage Output Short Circuit Duration Power Dissipation Operating Temperature MC33

📥 Download Datasheet

Preview of MC3303 PDF

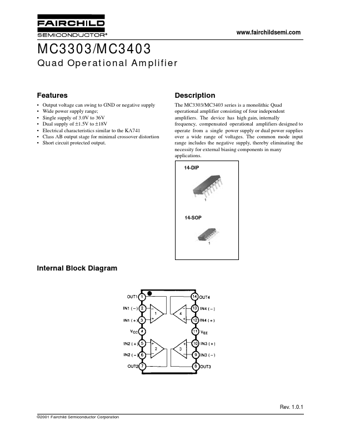

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MC3303
Manufacturer
Fairchild Semiconductor
File Size
84.13 KB
Datasheet
MC3303_FairchildSemiconductor.pdf
Description
Quad Operational Amplifier
