MC33030 Datasheet - Motorola

MC33030 DC SERVO MOTOR CONTROLLER/DRIVER

Order this document by MC33030/D MC33030 DC Servo Motor Controller/Driver The MC33030 is a monolithic DC servo motor controller providing all active functions necessary for a complete closed loop system. This device consists of an on chip op amp and window comparator with wide input common mode range, drive and brake logic with direction memory, Power H Switch driver capable of 1.0 A, independently programmable over current monitor and shutdown delay, and over

MC33030 Features

* 0 0 4 MOTOROLA ANALOG IC DEVICE DATA MC33030 Figure 7. Brake Diode Forward Current versus Forward Voltage TA = 25°C 400 300 200 100 0 0.5 Isource , OUTPUT SOURCE CURRENT (mA) 500 IF , FORWARD CURRENT (mA) 800 VCC = 14 V TA = 25°C 600 Figure 8. Output Source Current

* Limit versus Over

MC33030 Datasheet (322.00 KB)

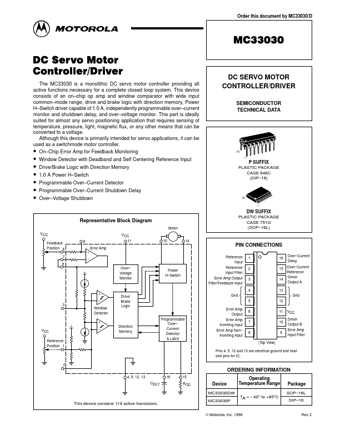

Preview of MC33030 PDF
MC33030 Datasheet Preview Page 2 MC33030 Datasheet Preview Page 3

Datasheet Details

Part number:

MC33030

Manufacturer:

Motorola

File Size:

322.00 KB

Description:

Dc servo motor controller/driver.
