MM74C76

Dual J-K Flip-Flops

MM74C76 Features

* s Supply voltage range: 3V to 15V s Tenth power TTL compatible: Drive 2 LPTTL loads s High noise immunity: 0.45 VCC (typ.) s Low power: 50 nW (typ.) s Medium speed operation: 10 MHz (typ.) Applications

* Automotive

* Data terminals

* Instrumentat

MM74C76 General Description

The MM74C73 and MM74C76 dual J-K flip-flops are monolithic complementary MOS (CMOS) integrated circuits constructed with N- and P-channel enhancement transistors. Each flip-flop has independent J, K, clock and clear inputs and Q and Q outputs. The MM74C76 flip flops also include preset inputs and ar.

MM74C76 Datasheet (85.40 KB)

Preview of MM74C76 PDF

Datasheet Details

Part number:

MM74C76

Manufacturer:

Fairchild Semiconductor

File Size:

85.40 KB

Description:

Dual j-k flip-flops.
MM74C73

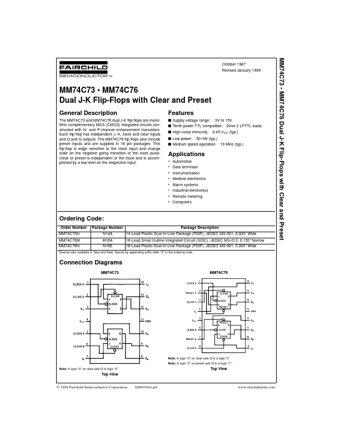

* MM74C76 Dual J-K Flip-Flops with Clear and Preset October 1987 Revised January 1999 MM74C73

* MM74C76 Dual J-K Flip-Flops .
