MM74C08

Quad 2-Input AND Gate

MM74C08 Features

* s Wide supply voltage range: s Guaranteed noise margin: s High noise immunity: 3.0V to 15V 1.0V 0.45 VCC (typ.) s Low power TTL compatibility: Fan out of 2 driving 74L s Low power consumption: 10 nW/package (typ.) Ordering Code: Order Number MM74C08M MM74CD8N Package Number M14A N14A Package Descr

MM74C08 General Description

The MM74C08 employs complementary MOS (CMOS) transistors to achieve wide power supply operating range, low power consumption and high noise margin, these gates provide basic functions used in the implementation of digital integrated circuit systems. The N- and P-channel enhancement mode transistors .

MM74C08 Datasheet (52.43 KB)

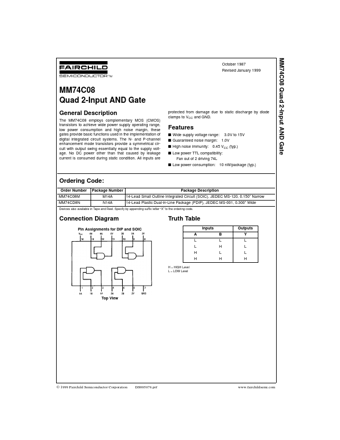

Preview of MM74C08 PDF

Datasheet Details

Part number:

MM74C08

Manufacturer:

Fairchild

File Size:

52.43 KB

Description:

Quad 2-input and gate.
