MM74C150

16-Line to 1-Line Multiplexer

MM74C150 Features

* s Wide supply voltage range: s Guaranteed noise margin: s High noise immunity: 3.0V to 15V 1.0V 0.45 VCC (typ.) s TTL compatibility: Drive 1 TTL Load Ordering Code: Order Number MM74C150N MM82C19N Package Number N24A N24A Package Description 24-Lead plastic Dual-In-Line Package (PDIP), JEDEC MS-01

MM74C150 General Description

The MM74C150 and MM82C19 multiplex 16 digital lines to 1 output. A 4-bit address code determines the particular 1of-16 inputs which is routed to the output. The data is inverted from input to output. A strobe override places the output of MM74C150 in the logical “1” state and the output of MM82C19 i.

MM74C150 Datasheet (69.83 KB)

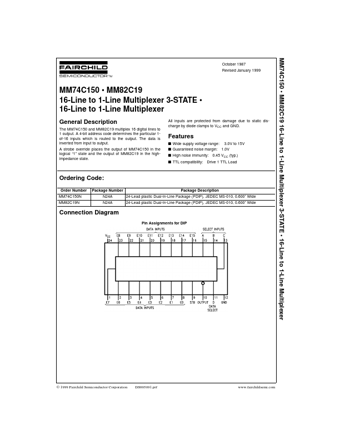

Preview of MM74C150 PDF

Datasheet Details

Part number:

MM74C150

Manufacturer:

Fairchild

File Size:

69.83 KB

Description:

16-line to 1-line multiplexer.
MM74C150

* MM82C19 16-Line to 1-Line Multiplexer 3-STATE

* 16-Line to 1-Line Multiplexer October 1987 Revised January 1999 MM74C150 .
