MM74C173

TRI-STATE Quad D Flip-Flop

MM74C173 Features

* Y Y Y Y Y Y Y Supply voltage range 3V to 15V Tenth power TTL compatible Drive 2 LPTTL loads High noise immunity 0 45 VCC (typ ) Low power Medium speed operation High impedance TRI-STATE Input disable without gating the clock Applications Y Y Y Y Automotive Data terminals Instrumentation Medical e

MM74C173 General Description

The MM54C173 MM74C173 TRI-STATE quad D flip-flop is a monolithic complementary MOS (CMOS) integrated circuit constructed with N- and P-channel enhancement transistors The four D-type flip-flops operate synchronously from a common clock The TRI-STATE output allows the device to be used in bus-organiz.

MM74C173 Datasheet (138.12 KB)

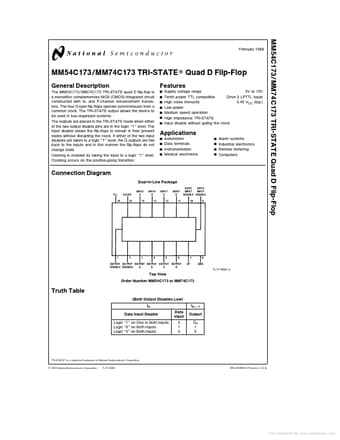

Preview of MM74C173 PDF

Datasheet Details

Part number:

MM74C173

Manufacturer:

National Semiconductor

File Size:

138.12 KB

Description:

Tri-state quad d flip-flop.
