MM74C157

Quad 2-Input Multiplexers

MM74C157 Features

* s Supply voltage range: s High noise immunity: 3V to 15V 0.45 VCC (typ.) Drive 2 LPTTL loads s Low power: 50 nW (typ.) s Tenth power TTL compatible: Ordering Code: Order Number MM74C157N Package Number N16E Package Description 16-Lead Plastic Dual-In-Line Package (PDIP), JEDEC MS-001, 0.300” Wide

MM74C157 General Description

The MM74C157 multiplexers are monolithic complementary MOS (CMOS) integrated circuits constructed with Nand P-channel enhancement transistors. They consist of four 2-input multiplexers with common select and enable inputs. When the enable input is at logical “0” the four outputs assume the values as.

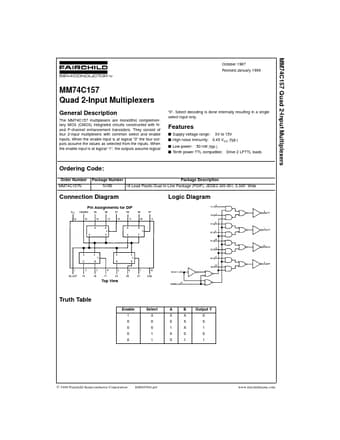

MM74C157 Datasheet (40.49 KB)

Preview of MM74C157 PDF

Datasheet Details

Part number:

MM74C157

Manufacturer:

Fairchild

File Size:

40.49 KB

Description:

Quad 2-input multiplexers.
