MOC3031M - 6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER

MOC3031M Description

6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER OUTPUT (250/400 VOLT PEAK) MOC3031M MOC3032M MOC3033M MOC3041M MOC3042M MOC3043M .
The MOC303XM and MOC304XM devices consist of a AlGaAs infrared emitting diode optically coupled to a monolithic silicon detector performing the functi.

MOC3031M Features

* Simplifies logic control of 115 VAC power
* Zero voltage crossing
* dv/dt of 2000 V/µs typical, 1000 V/µs guaranteed

MOC3031M Applications

* Solenoid/valve controls
* Static power switches
* Temperature controls
* AC motor starters
* Lighting controls
* AC motor drives
* E. M. contactors
* Solid state relays 6 6 1 6 1 1 SCHEMATIC ANODE 1 6 MAIN TERM. CATHODE 2 N/C 3

📥 Download Datasheet

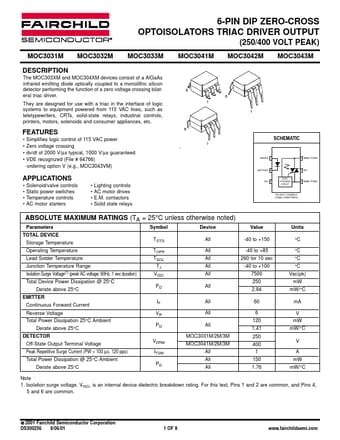

Preview of MOC3031M PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
MOC3031M
Manufacturer
Fairchild Semiconductor
File Size
394.08 KB
Datasheet
MOC3031M_FairchildSemiconductor.pdf
Description
6-PIN DIP ZERO-CROSS OPTOISOLATORS TRIAC DRIVER
