MOC3051M Datasheet - Fairchild Semiconductor

6-Pin DIP Random-Phase Optoisolator

MOC3051M Features

* Excellent IFT Stability

* IR Emitting Diode Has Low Degradation

* 600 V Peak Blocking Voltage

* Safety and Regulatory Approvals

* UL1577, 4,170 VACRMS for 1 Minute

* DIN EN/IEC60747-5-5 Applications

* Solenoid/Valve Controls

* Lamp Ball

MOC3051M General Description

The MOC3051M and MOC3052M consist of a GaAs infrared emitting diode optically coupled to a non-zerocrossing silicon bilateral AC switch (triac). These devices isolate low voltage logic from 115 VAC and 240 VAC lines to provide random phase control of high current triacs or thyristors. These devices .

MOC3051M Datasheet (412.22 KB)

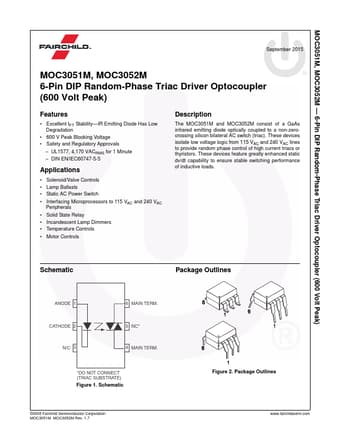

MOC3051M Datasheet Preview — Preview of MOC3051M PDF

Datasheet Details

Part number:

MOC3051M

Manufacturer:

Fairchild Semiconductor

File Size:

412.22 KB

Description:

6-pin dip random-phase optoisolator.
MOC3051M, MOC3052M 6-Pin DIP Random-Phase Triac Driver Optocoupler (600 Volt Peak) September 2015 MOC3051M, MOC3052M 6-Pin DIP Random-Phas.
