MOC8106M, Phototransistor Optocouplers

CNY17XM, CNY17FXM, MOC810XM * Phototransistor Optocouplers November 2009 CNY171M, CNY172M, CNY173M, CNY174M, CNY17F1M, CNY17F2M, CNY17F3M, C.
The CNY17XM, CNY17FXM and MOC810XM devices consist of a Gallium Arsenide IRED coupled with an NPN phototransistor in a dual in-line package.

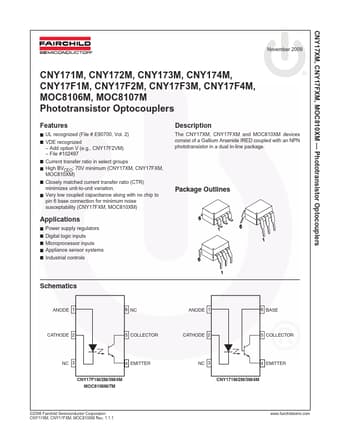

datasheet Preview Page 1 from Datasheet4u.com

MOC8106M-FairchildSemiconductor.pdf

MOC8106M Datasheet Preview — Preview of MOC8106M PDF

Datasheet Details

Part number:

MOC8106M

Manufacturer:

Fairchild Semiconductor

File Size:

261.99 KB

Description:

Phototransistor Optocouplers

Features

* UL recognized (File # E90700, Vol. 2)

Applications

* Power supply regulators
* Digital logic inputs
* Microprocessor inputs
* Appliance sensor systems
* Industrial controls Schematics ANODE 1 6 NC ANODE 1 6 BASE CATHODE 2 5 COLLECTOR CATHODE 2 5 COLLECTOR NC 3 4 EMITTER NC 3 4 EMITTER CNY17F1M/2M/3M/4M MOC8106M/7M
