PN4141 - NPN General Purpose Amplifier

📥 Download Datasheet

Datasheet preview – PN4141

Datasheet Details

Part number PN4141
Manufacturer Fairchild Semiconductor
File Size 25.01 KB
Description NPN General Purpose Amplifier
Datasheet download datasheet PN4141 Datasheet
Additional preview pages of the PN4141 datasheet.

📁 Similar Datasheet

  • PN4117 - N-Channel JFET General Purpose Amplifier (Calogic LLC)
  • PN4117 - High Impedence (Micross)
  • PN4117 - n-channel JFET (Siliconix)
  • PN4117A - N-Channel JFET General Purpose Amplifier (Calogic LLC)
  • PN4117A - N-Channel JFETs (Vishay Siliconix)
  • PN4117A - n-channel JFET (Siliconix)
  • PN4118 - N-Channel JFET General Purpose Amplifier (Calogic LLC)
  • PN4118 - High Impedence (Micross)
  • PN4118 - n-channel JFET (Siliconix)
  • PN4118A - n-channel JFET (Siliconix)
Other Datasheets by Fairchild Semiconductor

Full PDF Text Transcription

Click to expand full text

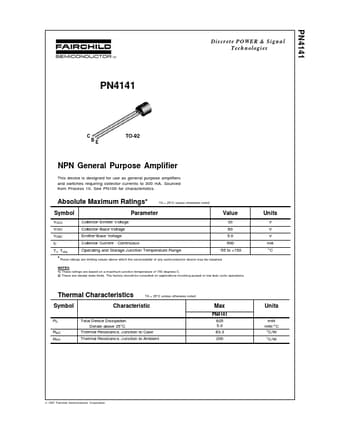

PN4141 Discrete POWER & Signal Technologies PN4141 C BE TO-92 NPN General Purpose Amplifier This device is designed for use as general purpose amplifiers and switches requiring collector currents to 300 mA. Sourced from Process 10. See PN100 for characteristics. Absolute Maximum Ratings* Symbol VCEO VCBO VEBO IC TJ, Tstg Collector-Emitter Voltage Collector-Base Voltage Emitter-Base Voltage Collector Current - Continuous TA = 25°C unless otherwise noted Parameter Value 30 60 5.0 500 -55 to +150 Units V V V mA °C Operating and Storage Junction Temperature Range *These ratings are limiting values above which the serviceability of any semiconductor device may be impaired. NOTES: 1) These ratings are based on a maximum junction temperature of 150 degrees C.
