PN4120 n-channel JFET

n-channel JFETs designed for Ultra-High Input Impedance Amplifiers Electrometers pH Meters Smoke Detectors ABSOLUTE MAXIMUM RATINGS (25°C) Reverse Gate-Drain or Gate-Source Voltage -40 V Gate Current 10 rnA Total Device Dissipation at 25°C Ambient (Derate 3.27 mW;oC) 360 mW Operating Temperature Range -55 to 135°C Storage Temperature Range -55 to 150°C Lead Temperature Range (1/16" from case for 10 seconds) 300°C .H Siliconix Performance Curves NT See.

PN4117-Siliconix.pdf

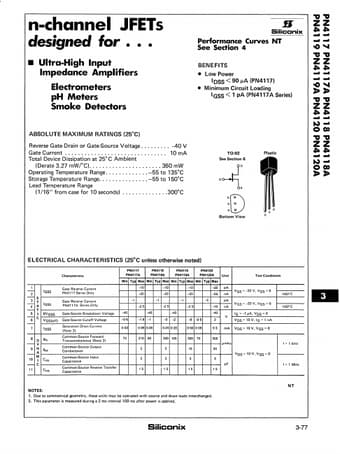

PN4120 Datasheet Preview — This datasheet PDF includes multiple part numbers: PN4120, PN4117. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

PN4120, PN4117

Manufacturer:

Siliconix

File Size:

60.83 KB

Description:

N-channel jfet.

Note:

This datasheet PDF includes multiple part numbers: PN4120, PN4117.
Please refer to the document for exact specifications by model.
