QEE113 Datasheet, Diode, Fairchild Semiconductor

QEE113 Features

• Diode
• λ= 940 nm Package Type = Sidelooker Chip Material = GaAs Matched Photosensor: QSE113 Medium Wide Emission

PDF File Details

Part number:

QEE113

Manufacturer:

Fairchild Semiconductor

File Size:

332.90kb

Download:

📄 Datasheet

Description:

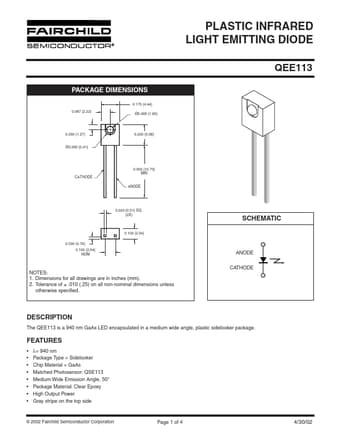

Plastic infrared light emitting diode. The QEE113 is a 940 nm GaAs LED encapsulated in a medium wide angle, plastic sidelooker package. FEATURES

<
