QRB1113 Datasheet - Fairchild Semiconductor

QRB1113 PHOTOTRANSISTOR REFLECTIVE OBJECT SENSOR

The QRB1113/1114 consists of an infrared emitting diode and an NPN silicon phototransistor mounted side by side on a converging optical axis in a black plastic housing. The phototransistor responds to radiation from the emitting diode only when a reflective object passes within its field of view. The .

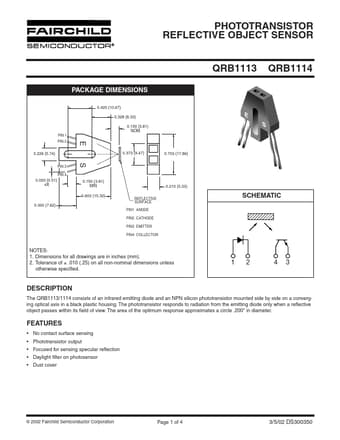

PHOTOTRANSISTOR REFLECTIVE OBJECT SENSOR QRB1113 PACKAGE DIMENSIONS 0.420 (10.67) 0.328 (8.33) 0.150 (3.81) NOM PIN 1 PIN 2 QRB1114 E S E 0.373 (9.47) 0.226 (5.74) 0.703 (17.86) S PIN 3 PIN 4 0.020 (0.51) 4X 0.150 (3.81) MIN 0.603 (15.32) REFLECTIVE SURFACE PIN1 ANODE PIN2 CATHODE PIN3 EMITTER PIN4 COLLECTOR 0.210 (5.33) SCHEMATIC 0.300 (7.62) NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ± .010 (.25) on all non-nominal dimensions unless otherwise specifie.

QRB1113 Features

* No contact surface sensing

* Phototransistor output

* Focused for sensing specular reflection

* Daylight filter on photosensor

* Dust cover © 2002 Fairchild Semiconductor Corporation Page 1 of 4 3/5/02 DS300350 PHOTOTRANSISTOR REFLECTIVE OBJECT SENSOR QRB1

QRB1113_FairchildSemiconductor.pdf

Preview of QRB1113 PDF
QRB1113 Datasheet Preview Page 2 QRB1113 Datasheet Preview Page 3

Datasheet Details

Part number:

QRB1113

Manufacturer:

Fairchild Semiconductor

File Size:

314.16 KB

Description:

Phototransistor reflective object sensor.
