QRB1133

PHOTOTRANSISTOR REFLECTIVE OBJECT SENSORS

QRB1133 Features

* Phototransistor output

* High Sensitivity

* Low cost plastic housing

* #26 AWG, 24 inch PVC wire termination

* Infrared transparent plastic covers for dust protection  2001 Fairchild Semiconductor Corporation DS300351 7/02/01 1 OF 4 www.fairchildsemi.com

QRB1133 General Description

The QRB1133/1134 consists of an infrared emitting diode and an NPN silicon phototransistor mounted side by side on a converging optical axis in a black plastic housing. The phototransistor responds to radiation from the emitting diode only when a reflective object passes within its field of view. Th.

QRB1133 Datasheet (47.90 KB)

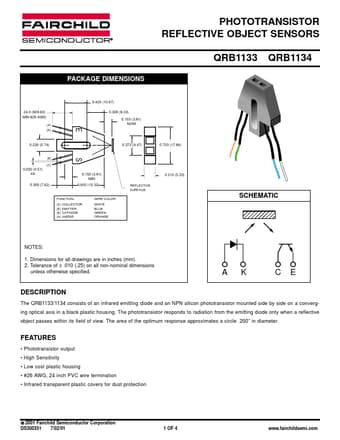

Preview of QRB1133 PDF

Datasheet Details

Part number:

QRB1133

Manufacturer:

Fairchild Semiconductor

File Size:

47.90 KB

Description:

Phototransistor reflective object sensors.
PHOTOTRANSISTOR REFLECTIVE OBJECT SENSORS QRB1133 PACKAGE DIMENSIONS QRB1134 0.420 (10.67) 24.0 (609.60) MIN #26 AWG (A) 0.328 (8.33) 0.150 (3.81) .
