QSE114 - PLASTIC SILICON INFRARED PHOTOTRANSISTOR

Datasheet Summary

Description

The QSE113/114 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.

Features

  • NPN silicon phototransistor Package type: Sidelooker Medium wide reception angle, 50° Package material and color: black epoxy Matched emitter: QEE113 Daylight filter High sensitivity © 2002 Fairchild Semiconductor Corporation Page 1 of 4 5/1/02.

📥 Download Datasheet

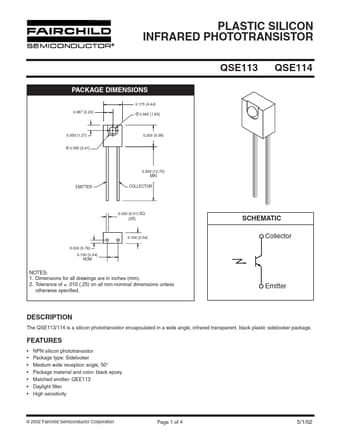

Datasheet preview – QSE114

Datasheet Details

Part number QSE114
Manufacturer Fairchild Semiconductor
File Size 320.17 KB
Description PLASTIC SILICON INFRARED PHOTOTRANSISTOR
Datasheet download datasheet QSE114 Datasheet
Additional preview pages of the QSE114 datasheet.

📁 Similar Datasheet

  • QSE114 - SIDELOODER PHOTOTRANSISTOR (QT Optoelectronics)
  • QSE114 - Plastic Silicon Infrared Phototransistor (ON Semiconductor)
  • QSE113 - SIDELOODER PHOTOTRANSISTOR (QT Optoelectronics)
  • QSE113 - Plastic Silicon Infrared Phototransistor (ON Semiconductor)
  • QSE122 - SIDELOOKE PHOTOTRANSISTOR (QT Optoelectronics)
  • QSE123 - SIDELOOKE PHOTOTRANSISTOR (QT Optoelectronics)
  • QSE133 - SIDELOOKE PHOTODARLINGTON (QT Optoelectronics)
  • QSE156 - OPTOLOGIC (QT Optoelectronics)
  • QSE157 - OPTOLOGIC (QT Optoelectronics)
  • QSE158 - OPTOLOGIC (QT Optoelectronics)
Other Datasheets by Fairchild Semiconductor
  • QSE113 - PLASTIC SILICON INFRARED PHOTOTRANSISTOR
  • QSE122 - PLASTIC SILICON INFRARED PHOTOTRANSISTOR
  • QSE133 - PLASTIC SILICON INFRARED PHOTOTRANSISTOR
  • QSE156 - OPTOLOGIC
  • QSE157 - OPTOLOGIC
  • QSE158 - OPTOLOGIC
  • QSE159 - OPTOLOGIC
  • QSE213 - PLASTIC SILICON INFRARED PHOTOTRANSISTOR

Full PDF Text Transcription

Click to expand full text
PLASTIC SILICON INFRARED PHOTOTRANSISTOR QSE113 PACKAGE DIMENSIONS 0.175 (4.44) 0.087 (2.22) Ø 0.065 (1.65) QSE114 0.050 (1.27) 0.200 (5.08) Ø 0.095 (2.41) 0.500 (12.70) MIN EMITTER COLLECTOR 0.020 (0.51) SQ. (2X) SCHEMATIC Collector 0.100 (2.54) 0.030 (0.76) 0.100 (2.54) NOM NOTES: 1. Dimensions for all drawings are in inches (mm). 2. Tolerance of ± .010 (.25) on all non-nominal dimensions unless otherwise specified. Emitter DESCRIPTION The QSE113/114 is a silicon phototransistor encapsulated in a wide angle, infrared transparent, black plastic sidelooker package.
