QSE973 SIDELOOKER PIN PHOTODIODE

QSE973 Description

SIDELOOKER PIN PHOTODIODE QSE973 PACKAGE DIMENSIONS .189 (4.8) .126 (3.20) .110 (2.80) .27 (6.9) .25 (6.3) OPTICAL CENTER CATHODE .610 (15.48) MIN..
The QSE973 is a silicon PIN photodiode encapsulated in an infrared transparent, black, plastic T092 package. Daylight filter.

QSE973 Features

* Daylight filter
* T092 package
* PIN photodiode
* Recepting angle 90°
* Chip size = .1072 sq. inches (2.712 sq. mm)  2001 Fairchild Semiconductor Corporation DS300371 12/13/01 1 OF 4 www. fairchildsemi. com SIDELOOKER PIN PHOTODIODE QSE973 ABSOLUTE MAXIM

📥 Download Datasheet

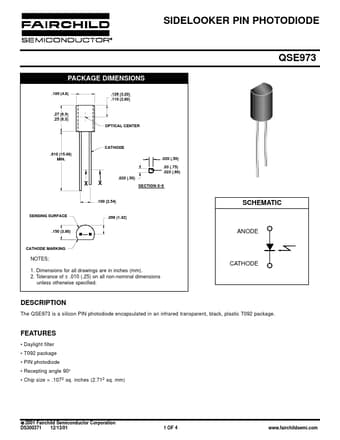

Preview of QSE973 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
QSE973
Manufacturer
Fairchild Semiconductor
File Size
38.99 KB
Datasheet
QSE973_FairchildSemiconductor.pdf
Description
SIDELOOKER PIN PHOTODIODE
