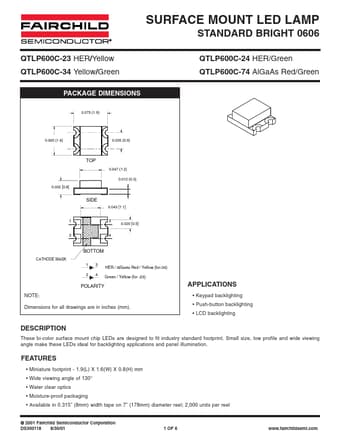

QTLP600C-34 Datasheet, 0606, Fairchild Semiconductor

QTLP600C-34 Features

• 0606
• Miniature footprint - 1.9(L) X 1.6(W) X 0.8(H) mm
• Wide viewing angle of 130°
• Water clear optics
• Moisture-proof packaging
• Available in 0

PDF File Details

Part number:

QTLP600C-34

Manufacturer:

Fairchild Semiconductor

File Size:

173.83kb

Download:

📄 Datasheet

Description:

Surface mount led lamp standard bright 0606. These bi-color surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide viewing angl

QTLP600C-34 Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting NOTE: Dimensions for all drawings are in i
