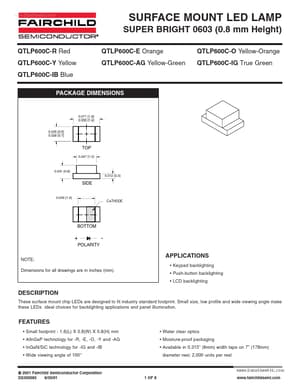

QTLP600C-IG Datasheet, 0603, Fairchild Semiconductor

QTLP600C-IG Features

• 0603
• Small footprint - 1.6(L) X 0.8(W) X 0.8(H) mm
• AllnGaP technology for -R, -E, -O, -Y and -AG
• InGaN/SiC technology for -IG and -IB
• Wide viewing ang

PDF File Details

Part number:

QTLP600C-IG

Manufacturer:

Fairchild Semiconductor

File Size:

174.37kb

Download:

📄 Datasheet

Description:

(qtlp600c-x) surface mount led lamp super bright 0603. These surface mount chip LEDs are designed to fit industry standard footprint. Small size, low profile and wide viewing angle make th

QTLP600C-IG Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting Dimensions for all drawings are in inches
