QTLP610C-7 Datasheet, Angle, Fairchild Semiconductor

QTLP610C-7 Features

• Angle
• Small footprint - 3.0(L) X 2.0(W) X 1.0(H) mm
• Wide viewing angle of 120°
• Water clear optics
• Moisture-proof packaging
• Available in 0.315

PDF File Details

Part number:

QTLP610C-7

Manufacturer:

Fairchild Semiconductor

File Size:

381.03kb

Download:

📄 Datasheet

Description:

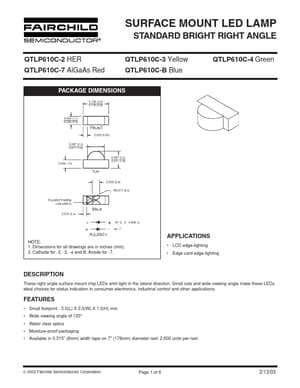

Surface mount led lamp standard bright right angle. These right angle surface mount chip LEDs emit light in the lateral direction. Small size and wide viewing angle make these LEDs idea

QTLP610C-7 Application

• Applications
• LCD edge-lighting
• Edge card edge-lighting NOTE: 1. Dimensions for all drawings are in inches (mm). 2. Cathode for
