QTLP611C Datasheet, Angle, Fairchild Semiconductor

QTLP611C Features

  • Angle
  • Miniature footprint - 2.1(L) X 1.0(W) X 0.6(H) mm
  • Wide viewing angle of 130°
  • Water clear optics
  • Available in 0.315" (8mm) width tape on 7" (178mm

PDF File Details

Part number:

QTLP611C

Manufacturer:

Fairchild Semiconductor

File Size:

364.56kb

Download:

📄 Datasheet

Description:

Surface mount led lamp compact right angle. This compact right angle surface mount chip LED emits light in the lateral direction. Miniature size and wide viewing angle make this

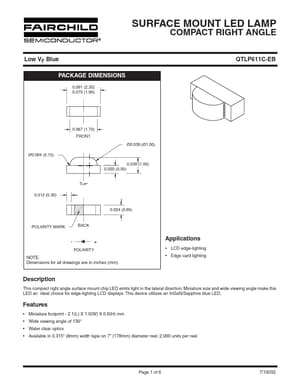

Datasheet Preview: QTLP611C 📥 Download PDF (364.56kb)
Page 2 of QTLP611C Page 3 of QTLP611C

QTLP611C Application

  • Applications
  • LCD edge-lighting
  • Edge card lighting NOTE: Dimensions for all drawings are in inches (mm). Description This compa
