QTLP630C SURFACE MOUNT LED LAMP STANDARD BRIGHT 0805

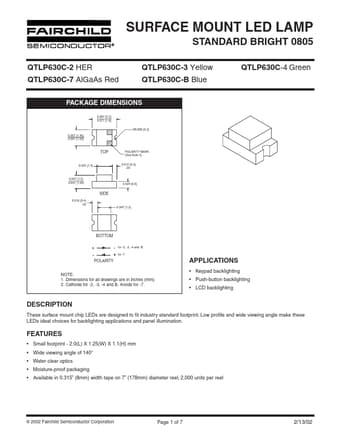

SURFACE MOUNT LED LAMP STANDARD BRIGHT 0805 QTLP630C-2 HER QTLP630C-7 AlGaAs Red QTLP630C-3 Yellow QTLP630C-B Blue QTLP630C-4 Green PACKAGE DIMENSIONS 0.087 (2.2) 0.071 (1.8) R0.008 (0.2) 0.057 (1.45) 0.041 (1.05) TOP POLARITY MARK (See Note 2) 0.012 (0.3) 2X 0.055 (1.4) 0.047 (1.2) 0.041 (1.05) 0.024 (0.6) SIDE 0.016 (0.4) 2X 0.047 (1.2) BOTTOM + POLARITY - for -2, -3, -4 and -B for -7 APPLICATIONS Keypad backlighting Push-button backlighting LCD backli.

QTLP630C Features

* Small footprint - 2.0(L) X 1.25(W) X 1.1(H) mm

* Wide viewing angle of 140°

* Water clear optics

* Moisture-proof packaging

* Available in 0.315” (8mm) width tape on 7” (178mm) diameter reel; 2,000 units per reel © 2002 Fairchild Semiconductor Corporation

QTLP630C_FairchildSemiconductor.pdf

Preview of QTLP630C PDF
QTLP630C Datasheet Preview Page 2 QTLP630C Datasheet Preview Page 3

Datasheet Details

Part number:

QTLP630C

Manufacturer:

Fairchild Semiconductor

File Size:

111.23 KB

Description:

Surface mount led lamp standard bright 0805.
