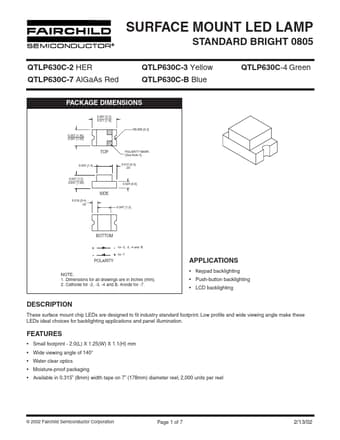

QTLP630C-B Datasheet, 0805, Fairchild Semiconductor

QTLP630C-B Features

• 0805
• Small footprint - 2.0(L) X 1.25(W) X 1.1(H) mm
• Wide viewing angle of 140°
• Water clear optics
• Moisture-proof packaging
• Available in 0.31

PDF File Details

Part number:

QTLP630C-B

Manufacturer:

Fairchild Semiconductor

File Size:

111.23kb

Download:

📄 Datasheet

Description:

Surface mount led lamp standard bright 0805. These surface mount chip LEDs are designed to fit industry standard footprint. Low profile and wide viewing angle make these LEDs ideal

QTLP630C-B Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting NOTE: 1. Dimensions for all drawings are i
