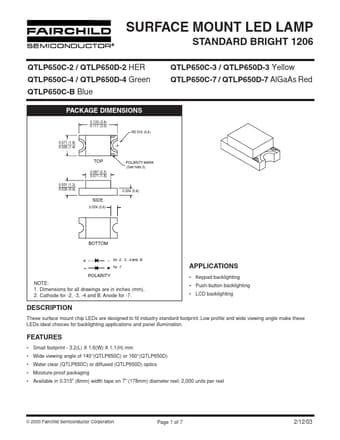

QTLP650D-7 Datasheet, 1206, Fairchild Semiconductor

QTLP650D-7 Features

• 1206
• Small footprint - 3.2(L) X 1.6(W) X 1.1(H) mm
• Wide viewing angle of 140°(QTLP650C) or 160°(QTLP650D)
• Water clear (QTLP650C) or diffused (QTLP650D) optics <

PDF File Details

Part number:

QTLP650D-7

Manufacturer:

Fairchild Semiconductor

File Size:

401.60kb

Download:

📄 Datasheet

Description:

Surface mount led lamp standard bright 1206. These surface mount chip LEDs are designed to fit industry standard footprint. Low profile and wide viewing angle make these LEDs ideal

QTLP650D-7 Application

• Applications
• Keypad backlighting
• Push-button backlighting
• LCD backlighting NOTE: 1. Dimensions for all drawings are i
