QTLP660C-O

SURFACE MOUNT LED LAMP SUPER BRIGHT 1.8 mm (Dome Lens)

QTLP660C-O Datasheet (158.70 KB)

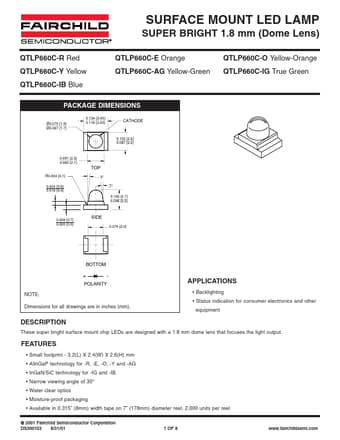

Preview of QTLP660C-O PDF Datasheet

Datasheet Details

Part number:

QTLP660C-O

Manufacturer:

Fairchild Semiconductor

File Size:

158.70 KB

Description:

Surface mount led lamp super bright 1.8 mm (dome lens)

QTLP660C-O Features

* Small footprint - 3.2(L) X 2.4(W) X 2.6(H) mm

* AllnGaP technology for -R, -E, -O, -Y and -AG

* InGaN/SiC technology for -IG and -IB

* Narrow viewing angle of 30°

* Water clear optics

* Moisture-proof packaging

* Available in 0.315” (8mm) wid

QTLP660C-O General Description

These super bright surface mount chip LEDs are designed with a 1.8 mm dome lens that focuses the light output. FEATURES

* Small footprint - 3.2(L) X 2.4(W) X 2.6(H) mm

* AllnGaP technology for -R, -E, -O, -Y and -AG

* InGaN/SiC technology for -IG and -IB

* Narrow vie.
